IMS120 - 120“ ID x 120” Long Electric Heat OTR Tire Chamber for Precure.

No longer available

IMS120 - 120“ ID x 120” Long Electric Heat OTR Tire Chamber for Precure.

Location:California

Description

IMS120 - 120“ ID x 120” Long Electric Heat OTR Tire Chamber for Precure.

MFG 2014, Unit has very low hours. Was being used for retreading large tires.


Specifications:

-          Built per ASME Section VIII, Div. 1, 2010 Ed., 2011a Addenda

-          SA-516 GR70 Carbon Steel

-          90 PSIG @ 450 Deg F w/ .0625” Corrosion Allowance

-          Hydraulic door lock ring and door swing with push button control and safety interlock to prevent the opening of the door above 1.5 psig.

-          Complete control of cure cycle from start to finish.

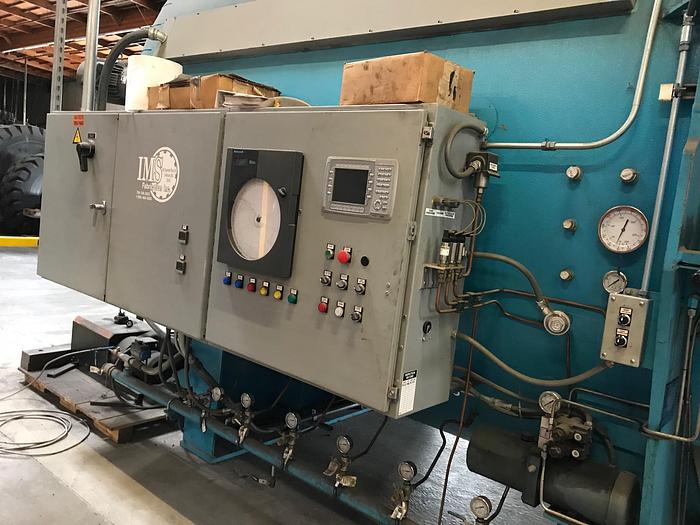

-          Control panel with Mitsubishi PLC.

-          6.4” Color display with key pad.

-          True Line Circular Chart Recorder for time & temperature.

-          Full program editing and storage capabilities with multiple cure recipes.

-          Run at precise temperature ambient-300°F for programmed time period.

-          Automatic chamber pressure control.

-          144 KW fin coil electrical heat elements located in air duct with mercury relay control.

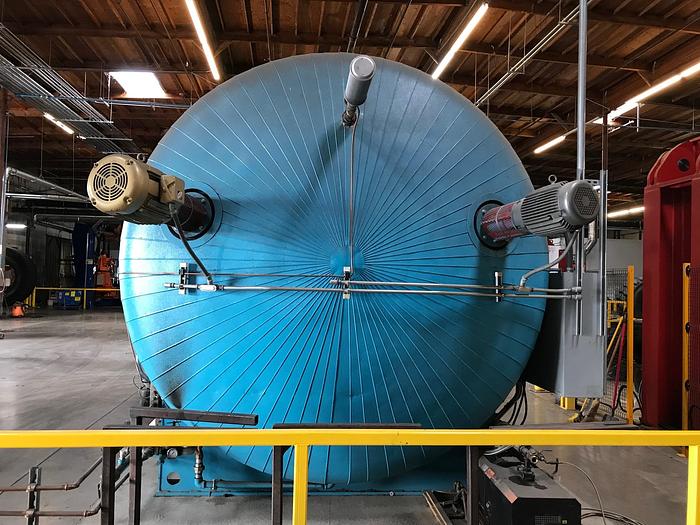

-          Two 15 HP fan with air circulation duct.

-          Vacuum manifold with 4 SS hoses.

-          2” of external insulation covered with embossed aluminum.

-          Control panel built to UL508A standard with UL stamp.


IMS78-000B OTR Adjustable J-Hook Tire Hanger

4,000 lb. capacity 48” Wide

With 8 rollers for I-Beam



Can be converted from electric to steam (its currently configured as electric)


*Buyer will need to pay additional fees for removal and freight.*


Specifications

ManufacturerIMS120 - 120“ ID x 120” Long Electric Heat OTR Tire Chamber for Precure.
ConditionUsed
