Nyle Systems Food Dehydrator

Nyle Systems Gas-Fired Dehydrator

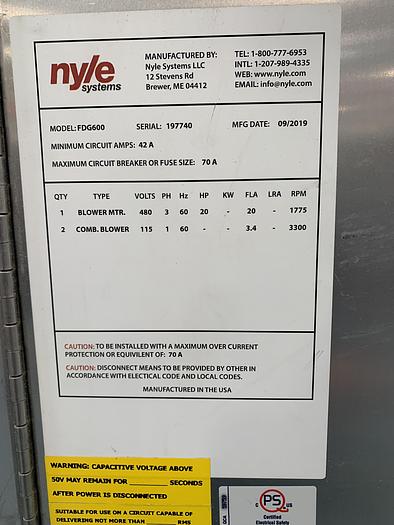

Model: FDG600, Serial No: 197740

MFG: 9/2019, Made In USA,

Dehydrator was only ran once, after installation in 2020

FDG600 Indirect Gas-Fired Dehydrator: Enhanced Efficiency & Control

The FDG600 Indirect Gas-Fired Dehydrator is Nyle's answer for businesses seeking an efficient, large-capacity dehydration system. With the ability to remove significant moisture, it's perfectly suited for various products, from fruits and vegetables to herbs and meats. The FDG600's spacious chamber, accommodating up to 18 racks, offers a substantial 1170 sq ft of drying space, blending high efficiency with versatility.

Burner Output:

800,000 BTU/h

Operating Temperature:

80°- 220°F ( 26°- 104°C )

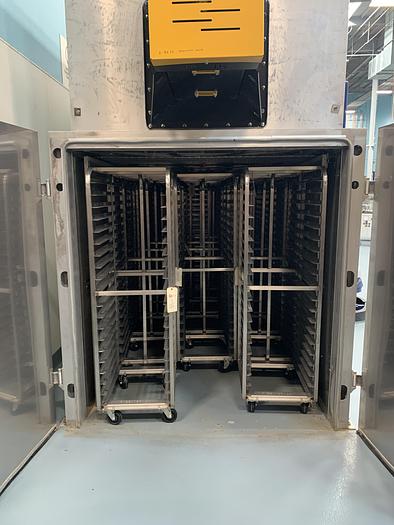

Loading Capacity:

18 Racks, 360 Trays, 1,170 Sq ft

Circulating Fans:

One 25 HP Plug Fan

Vents:

Two 30" x 30"

Loading Space:

15' 2" D x 5' 7" L x 6' 0" H

Total Footprint:

25' 0" D x 6' 3" L x 11' 0" H

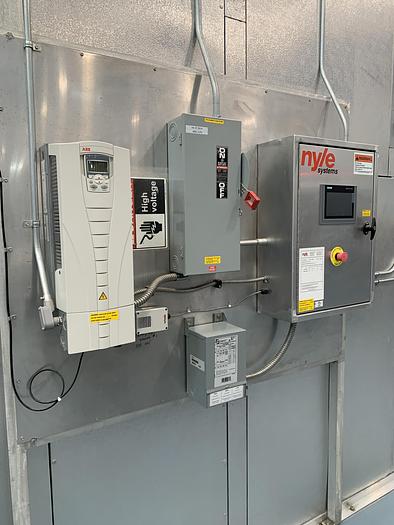

Power Options:

480V Three Phase, 50/60 Hz

* Load capacity is calculated based on standard rack dimensions of 26” x 20 3/8” x 69 1/2” with 3” layer spacing and 20 trays per rack. Price includes the racks pictured.
