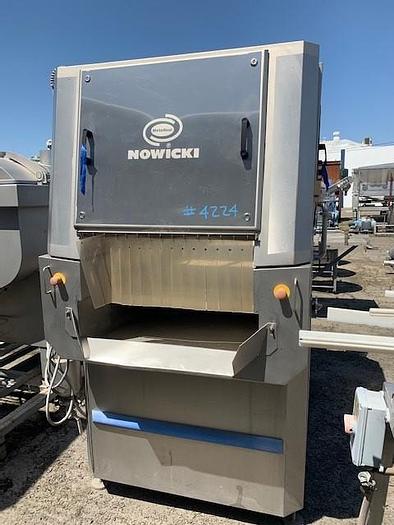

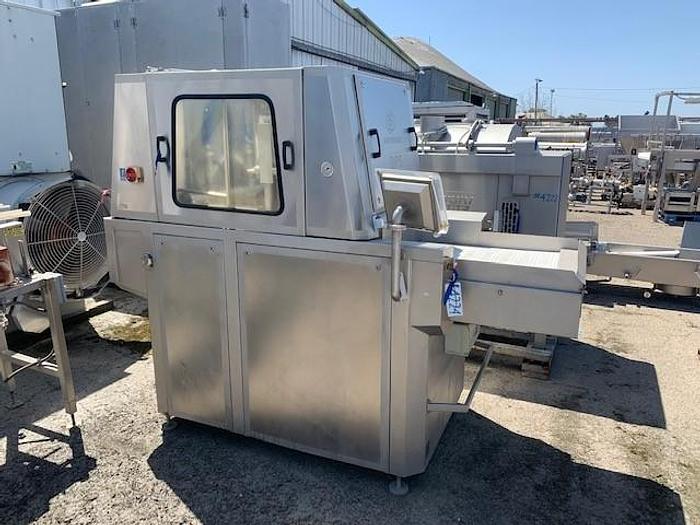

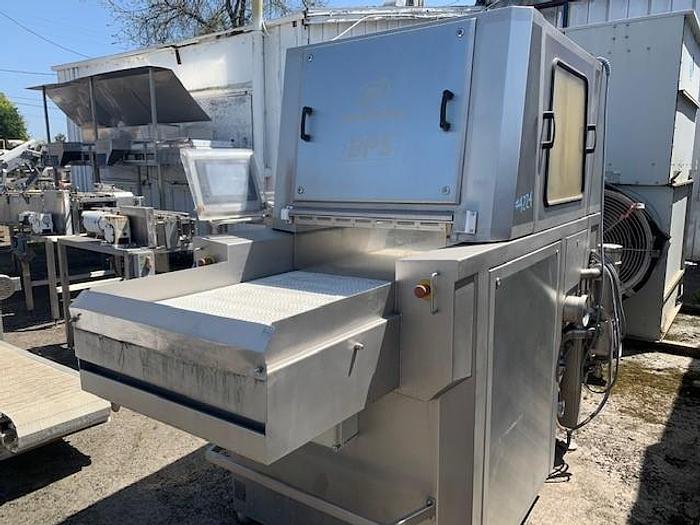

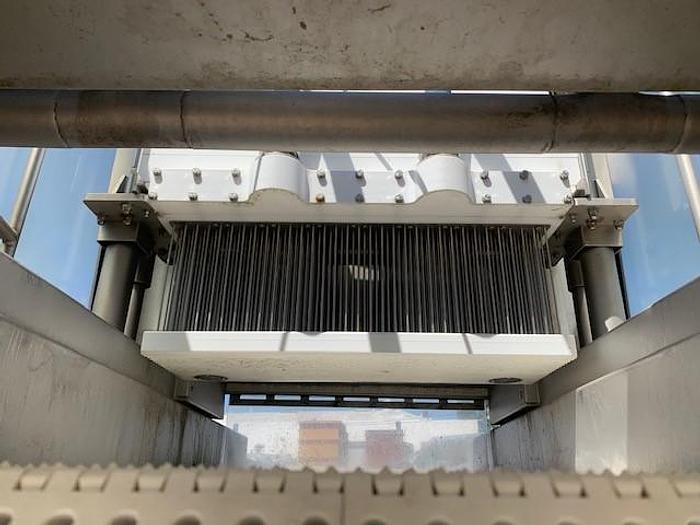

Nowicki Brine System -Brine Injector with Brine Filter System MTH 293 and FBN 293

Nowicki Brine System -Brine Injector Model MH-293 and Brine Filter Model FBN 293

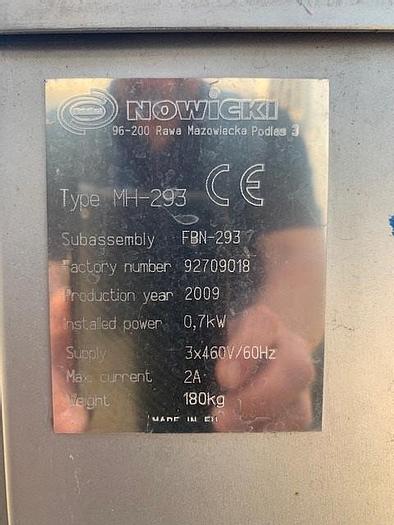

Serial No's: 92709018 and 92709018,

• High speed injection head in time (up to 60 cycles per minute)

• Servo- drive system for injection head and conveyor belt.
• Pneumatic aid system for needles.

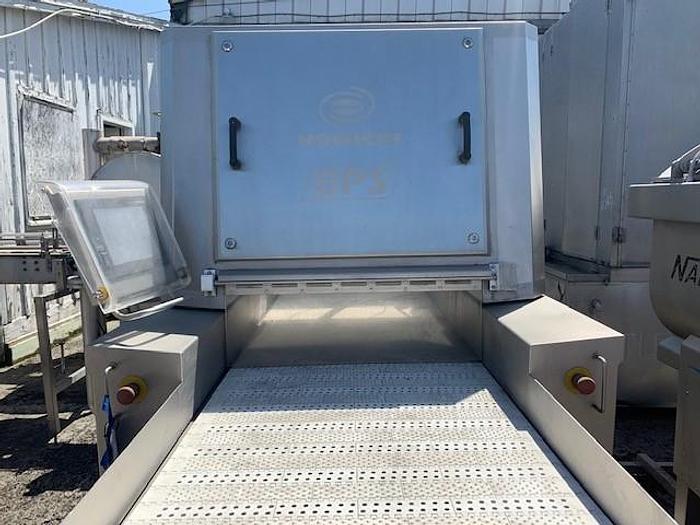

• Touch screen control panel
• Adjustment of injection head stroke from 40 to 210 MM.
• Adjustment of needles movement and valves opening /closing.
• Smooth adjustment of brine pressure.
• Auto diagnostic system.
• Continuous temp monitoring.
• Injection volume 5 to 100% of meat volume.
• Adjustable conveyor speed 21: 42: 84.
• Number of strokes per minute 20-60.
• Number of Needles 293.
• Brine injection filtration system.
• Voltage Frequency 460Volts -3 ph - 60 Hz
• Power installed 17KW , 25 Hp

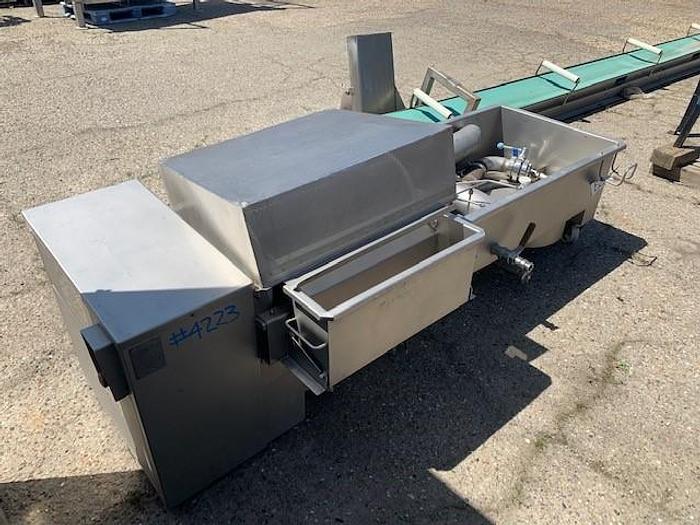

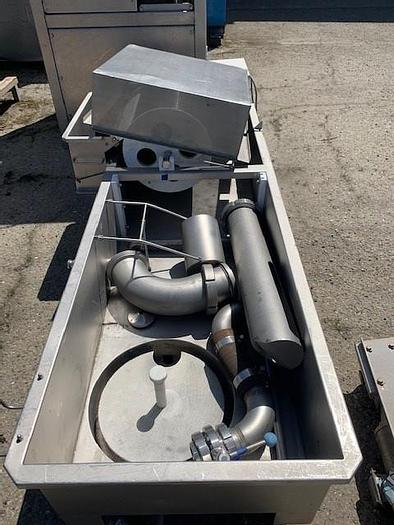

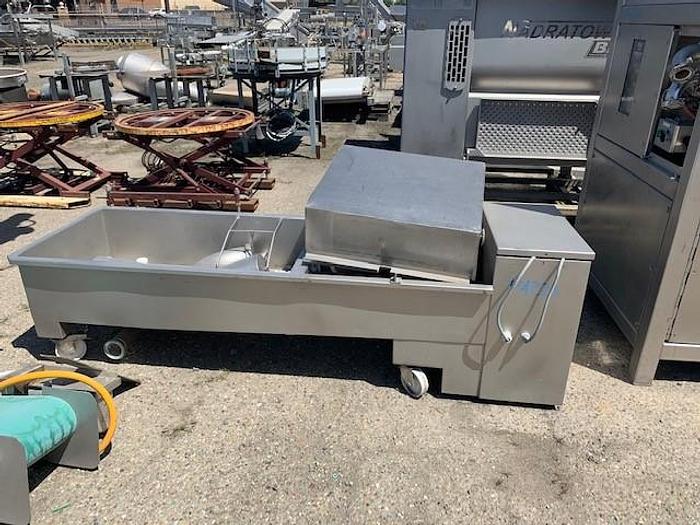

Brine Injection Filtration System

• Filter with replaceable cartridges' with different graduations
• Curtain filter, consisting of 3 grids with different graduations
• rotary filter with a slot drum for a very fine cleaning of return.
• container capacity 320 Liters.(85 gallons).
• Power installed 1.0 KW / 1.5 Hp
• Voltage Frequency 460Volts- 3 Ph - 60 Hz
